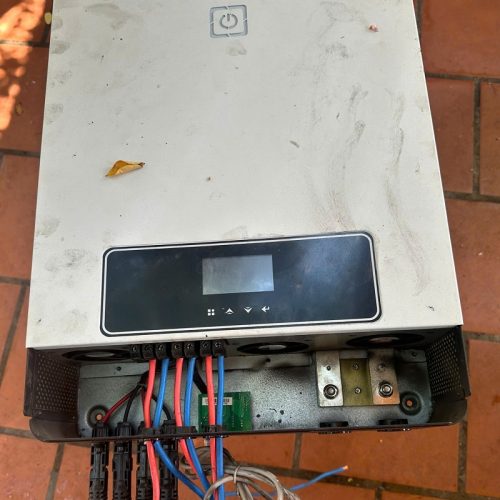

Mã lỗi biến tần Solar Inverter charger – Victor Max-8.2kw

Mã lỗi biến tần Solar Inverter charger – Victor Max-8.2kw được liệt kê phía dưới.

Fault Code

01 Fan is locked when inverter is off.
02 Over temperature
03 Battery voltage is too high
04 Battery voltage is too low
05 Output short circuited or over temperature is detected by internal converter components.
06 Output voltage is too high.
07 Overload time out
08 Bus voltage is too high
09 Bus soft start failed
51 Over current or surge
52 Bus voltage is too low
53 55 Inverter soft start failed .Over DC voltage in AC output
57 Current sensor failed
58 Output voltage is too low
59 PV voltage is over limitation

Warning Code Warning

01 Fan is locked when inverter is on. Beep three times every second
03 Battery is over-charged Beep once every second
04 Low battery Beep once every second
07 Overload Beep once every 0.5 second
10 Output power derating Beep twice every 3 seconds
15 PV energy is low. Beep twice every 3 seconds
Eq Battery equalization
bP Battery is not connected
